Type:Analog Input Module
Model:1746-IV16
Manufacturer:Allen-Bradley
Series:SLC 500
Inputs:16 channels
Input Voltage:24VDC
Voltage Range:-10VDC to +10VDC
Accuracy:+/- 1% of full scale
Resolution:12-bit
Current Consumption:Backplane: 0.4A @ 24VDC
Operating Temperature:-40°C to +70°C
Isolation Voltage:500VDC
Communication Interface:RS-485
Power Supply:DC Power Required
Dimensions:130mm x 100mm x 40mm
Weight:0.4kg

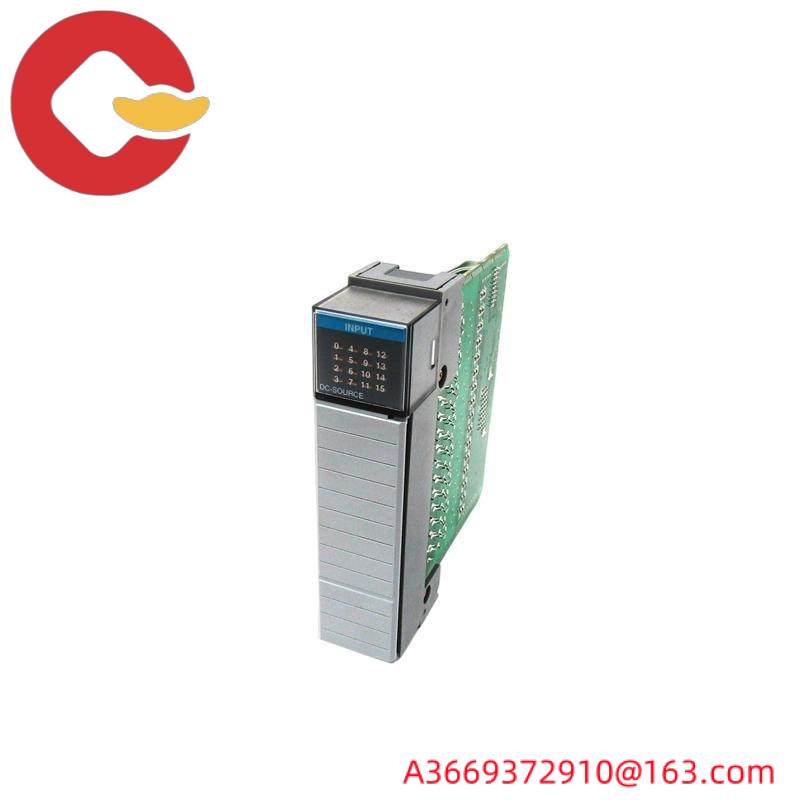

The AB 1746-IV16 module is specifically engineered for seamless integration into Allen-Bradley’s SLC 500 series controllers, providing high-resolution analog input capabilities.
Each channel offers precise voltage and current readings, essential for monitoring and controlling processes in a wide range of industries including manufacturing, packaging, and material handling.
Designed with robust isolation and overvoltage protection, this module ensures reliable operation even in harsh industrial environments.
Featuring a compact and durable design, the AB 1746-IV16 is compatible with standard backplane connections, simplifying installation and maintenance.
With its wide input voltage range and high accuracy, this module is ideal for applications requiring precise data acquisition from sensors, such as temperature, pressure, or flow measurement devices.
