Manufacturer:Allen-Bradley
Model Type:Interface Module
Model Number:1756-CN2R
Module Type:Dual Channel
Input Voltage:12 to 24 VDC
Output Voltage:12 to 24 VDC
Current Rating:20 mA per channel
Communication Protocol:ControlNet
Connector Type:M12 x 0.75
Temperature Range:-20°C to +60°C
Operating Environment:Non-condensing humidity 5% to 95%
Mechanical Dimensions:60 mm x 50 mm x 20 mm
Weight:20 grams

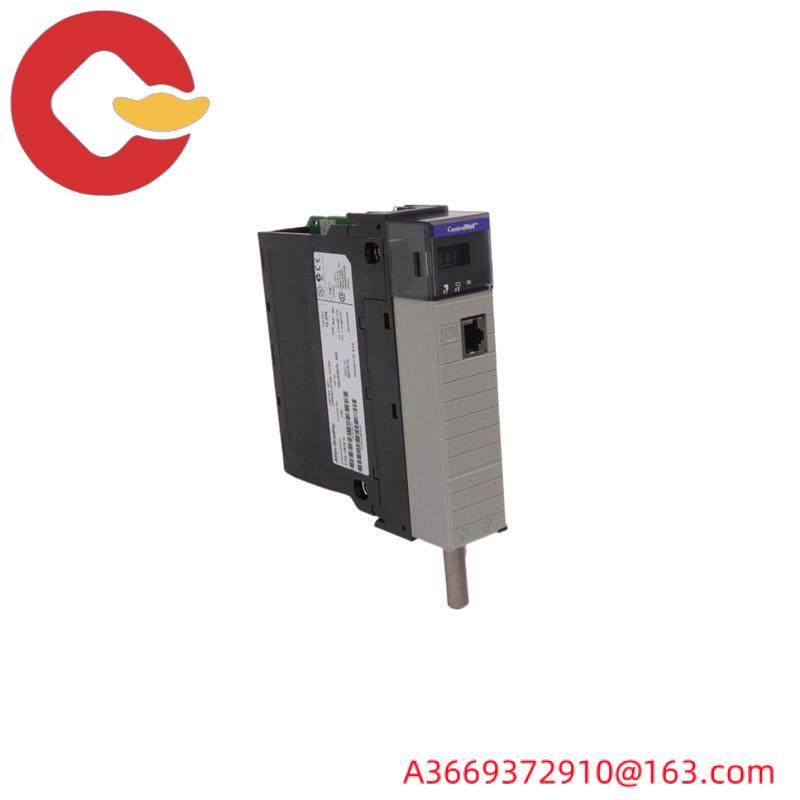

The AB 1756-CN2R Dual Channel Interface Module is designed for high-speed data transfer in industrial settings, ensuring reliable and efficient communication between ControlLogix systems. This module supports dual channels, providing redundancy and enhanced system reliability.
Featuring a robust enclosure rated for open type environments (-40°C to +70°C), the 1756-CN2R is engineered to withstand harsh industrial conditions. Its power dissipation is kept low at ≤ 2.5 W, making it suitable for power-sensitive applications.
Equipped with dual analog inputs, this interface module is compatible with various types of sensors and actuators, facilitating easy integration into existing control systems. It supports multiple communication protocols including ControlNet, DeviceNet, and EtherNet/IP, offering flexibility in networking and connectivity.
With its high isolation rating of 300 V AC, the 1756-CN2R ensures safe operation in environments where electrical isolation is critical. The module’s shielded or unshielded twisted pair connection cables provide excellent signal integrity, minimizing interference and ensuring reliable data transmission.
Designed for panel mounting, the AB 1756-CN2R Dual Channel Interface Module offers a compact solution for industrial control applications. Its compatibility with ControlLogix systems makes it an ideal choice for modern, advanced industrial automation setups.
