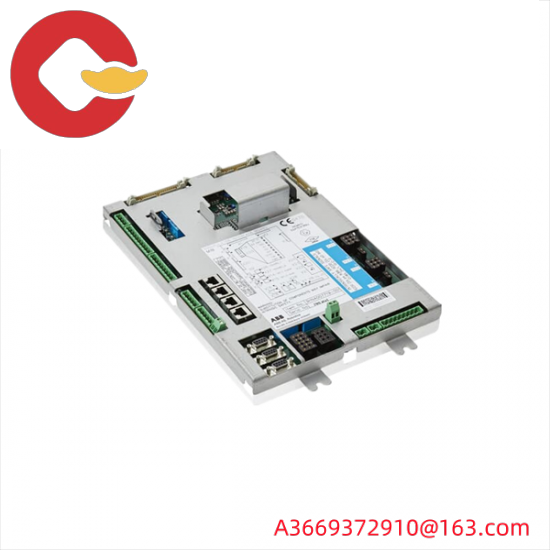

ABB 3HNA006145-001 Serial Measurement Card

Module Type:Serial Measurement Card

Manufacturer:ABB

Model:3HNA006145-001

Serial Data Rate:Up to 1 Mbps

Input Channels:4 Analog Input Channels

Power Supply:DC 24 V

Operating Temperature:-20°C to +70°C

Dimensions (mm):125 x 90 x 45

Connector Type:RS-485

Communication Protocol:MODBUS RTU

Certifications:CE, UL, CSA

Series Compatibility:ABB‘s Advanced Control Panel series

    The ABB 3HNA006145-001 Serial Measurement Card is engineered to meet the stringent demands of modern industrial environments. Its robust design ensures reliable performance even under challenging conditions, making it ideal for continuous operation in factories, power plants, and other industrial settings.

    Each of the four analog input channels supports a wide range of signal types, allowing for versatile integration with various sensors and measuring devices. This flexibility enables precise monitoring and control over critical process variables such as temperature, pressure, and flow rates.

    With support for up to 1 Mbps serial data rate, the card facilitates fast and efficient communication with other devices on the network. This feature is particularly beneficial in scenarios where real-time data processing and feedback loops are essential for optimal system performance.

    Featuring a compact yet rugged enclosure, the ABB 3HNA006145-001 is built to withstand harsh environmental conditions without compromising on functionality. Its compatibility with CE, UL, and CSA certifications ensures safety and reliability in global applications.

    Ease of installation and configuration are further enhanced by the card’s intuitive interface and comprehensive documentation, making it accessible to a broad range of users from technicians to engineers. Its seamless integration with ABB‘s advanced control panel series allows for streamlined system setup and maintenance.
