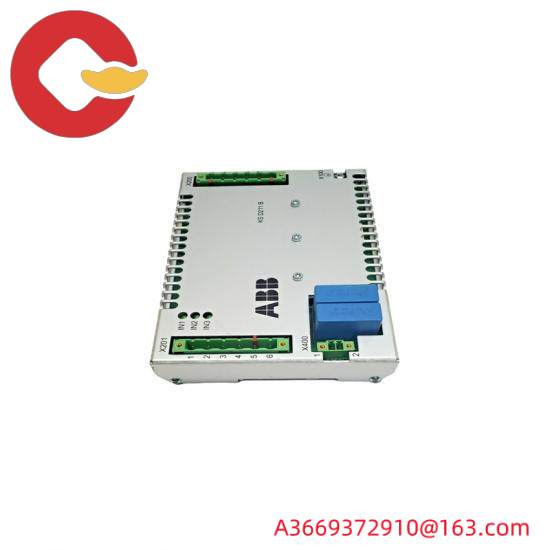

ABB CH-308802 – 3BHE022455R1101 Input Coupling Unit

Module Type:Input Coupling

Model Number:CH-308802 3BHE022455R1101

Manufacturer:ABB

Application Compatibility:Industrial Automation

Operating Voltage Range:8…30V DC

Data Transmission Rate:Up to 300Kbps

Number of Channels:16

Signal Types Supported:Analog and Digital Signals

Communication Protocol:DeviceNet, EtherCAT

Operating Temperature:-20°C to +60°C

Enclosure Protection Class:IP20

Dimensions (WxHxD):100mm x 35mm x 95mm

Weight:0.2kg

    Integrating cutting-edge technology, the ABB CH-308802 3BHE022455R1101 Input Coupling Unit is a vital component for industrial automation systems, ensuring reliable operation and high-speed data exchange.

    Designed for versatile application in various industries, this unit supports a wide range of signal types, including both analog and digital inputs, catering to diverse automation needs.

    Equipped with a high data transmission rate of up to 300Kbps, it ensures efficient communication within complex industrial networks, enhancing operational performance and system responsiveness.

    Featuring a compact yet robust design, the unit is engineered to withstand challenging operating conditions, from low to high temperatures, ensuring continuous operation in harsh environments.

    Compliant with industry-standard communication protocols such as DeviceNet and EtherCAT, this Input Coupling Unit seamlessly integrates with existing automation infrastructures, facilitating easy setup and maintenance.
