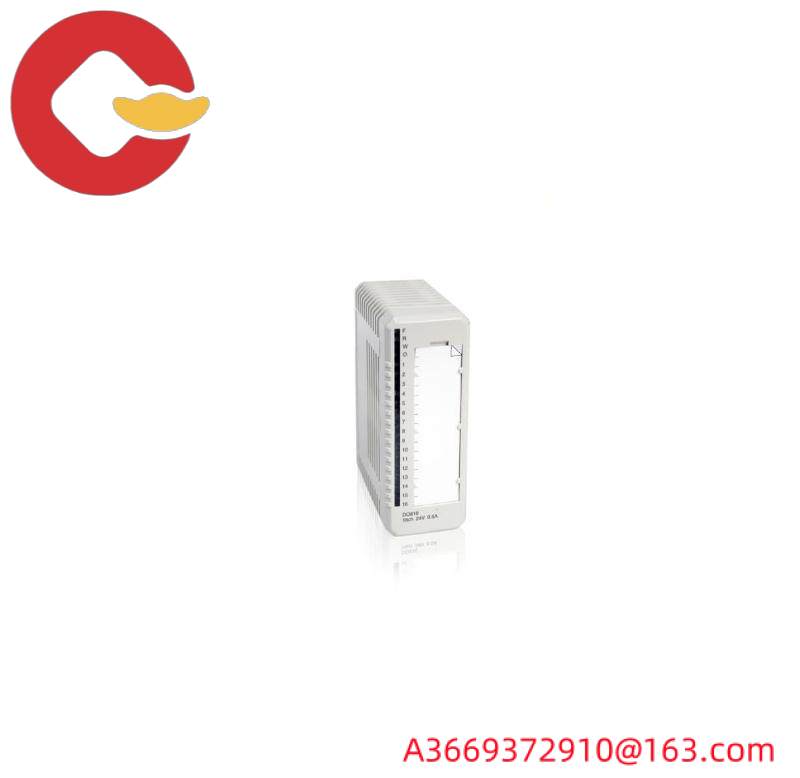

ABB DO810 | 3BSE008510R1 | PLC Digital Output Isolated Module

Operating Voltage:24 V DC

Current Rating:5 A at 24 V DC

Number of Channels:8 Independent Digital Outputs

Output Configuration:ISO 2500 series relays

Relay Operating Voltage:24 V DC

Relay Operating Current:5 A

Load Capacity:AC/DC up to 2 A

Operating Temperature Range:-25°C to +60°C

Storage Temperature Range:-40°C to +85°C

Mounting:Panel or DIN rail

Communication Compatibility:Supports Modbus TCP/IP and DeviceNet

Power Supply:Separate power supply required

    Integrating the ABB DO810 3BSE008510R1 Digital Output Module into your industrial system enhances operational efficiency with its high-speed digital output capabilities. This module is equipped with 8 isolated channels, ensuring reliable signal transmission even in harsh industrial environments.

    Featuring pulse width modulation (PWM), it allows precise control over the output signal’s duration, ideal for applications requiring variable speed or duty cycle adjustments. The module’s capability to handle currents up to 1A per channel makes it suitable for driving a wide range of actuators and sensors.

    With a versatile voltage range from 5V to 24V DC, the DO810 3BSE008510R1 accommodates diverse power requirements, enhancing its compatibility across different industrial systems. Its temperature range of -25°C to +60°C ensures robust operation in varied environmental conditions.

    For enhanced system reliability, the module supports separate power supply and communication interfaces, enabling seamless integration with other ABB devices through the DI/DO bus. This modular design facilitates easy installation and maintenance.

    Engineered for durability and reliability, the ABB DO810 3BSE008510R1 Digital Output Module is housed in a compact footprint of 82 x 82 x 78 mm, making it an efficient space-saving solution for compact industrial setups. Weighing just 0.15 kg, it is lightweight and portable, ensuring convenient handling during installation or relocation.
