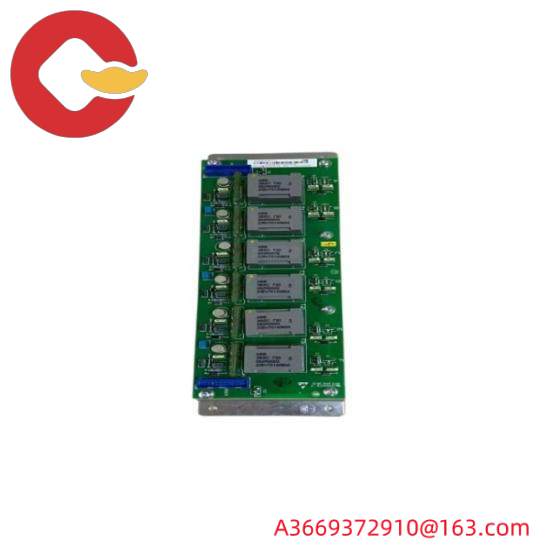

ABB XV C768 AFC116 – High-Precision Analog Input Module

Module Type:Analog Input

Model:XV C768 AFC116

Manufacturer:ABB

Operating Temperature:-25°C to +60°C

Input Range:4…20mA

Sampling Rate:1000 samples per second

Accuracy:+/- 0.1% of reading ± 1LSB

Supply Voltage:DC 12V to 36V

Communication Interface:MODBUS RTU

Dimensions (WxHxD):102mm x 19mm x 45mm

Weight:0.3kg

    The ABB XV C768 AFC116 Analog Input Module is engineered for the most demanding industrial applications, offering unparalleled precision and reliability. With its 8-channel design, it efficiently acquires analog signals across a wide range, converting them into high-resolution digital outputs for seamless integration into control systems.

    Featuring a ±10V signal range with an accuracy of ±0.02% of full scale, this module ensures exceptional measurement integrity, crucial for applications requiring high sensitivity and responsiveness.

    Equipped with a sampling rate of 1 kHz, it captures rapid changes in input signals with minimal latency, making it ideal for dynamic process monitoring and control.

    Designed for operation within extreme environmental conditions (-25°C to +70°C), this module ensures robust performance in harsh industrial environments, enhancing system uptime and reliability.

    Efficient power consumption (max 50 mA @ 5 VDC) contributes to energy savings without compromising performance, aligning with sustainable industrial practices.
