Brand:Allen-Bradley
Model:1746-IV16
Input Channels:16
Input Type:DC
Voltage Range:10 – 30 VDC
Off-State Voltage:3 VDC
Nominal Current:8 mA at 24 VDC
Off-State Current:1 mA
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Shock Resistance:30 G

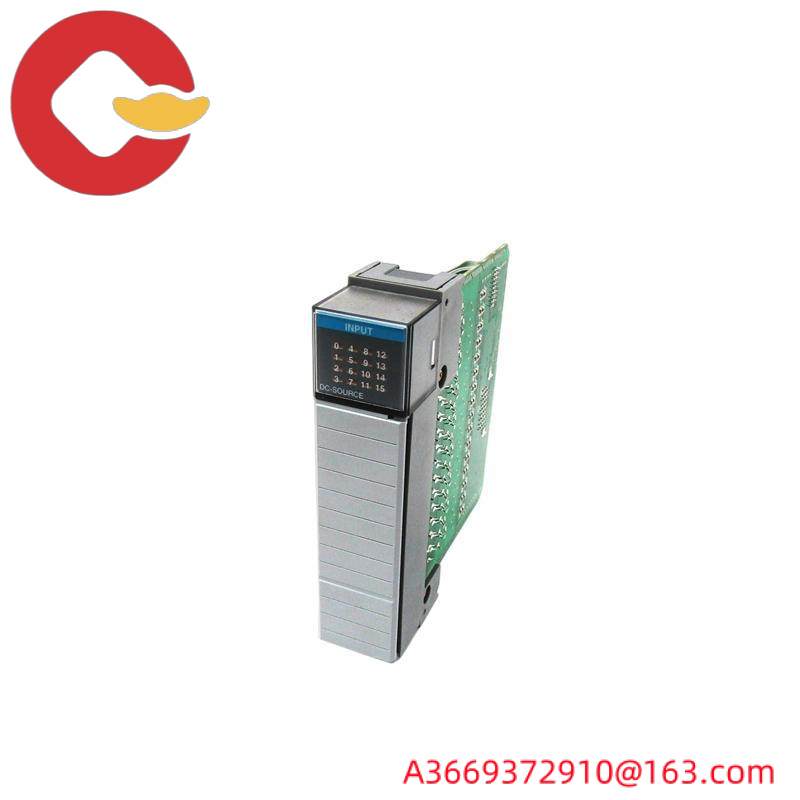

The Allen-Bradley 1746-IV16 DC Input Module is designed to deliver reliable and accurate performance in industrial environments. With its 16-channel DC input capability, this module is perfect for applications that require precise monitoring and control of digital inputs. It supports a wide voltage range of 10 to 30 VDC, ensuring compatibility with various industrial devices and systems. The off-state voltage threshold of 3 VDC ensures minimal interference from stray voltages, enhancing system reliability. Each channel can handle a nominal current of 8 mA at 24 VDC, providing robust signal handling. The module also boasts impressive isolation capabilities, with communication circuits rated at 500 VDC and backplane isolation at 1500 VAC, ensuring electrical safety and stability. Designed to withstand harsh industrial conditions, the module operates within a temperature range of 0 to 60°C and maintains operational integrity under relative humidity levels of 5 to 95%. Its shock resistance of 30 G ensures durability even in demanding environments.
