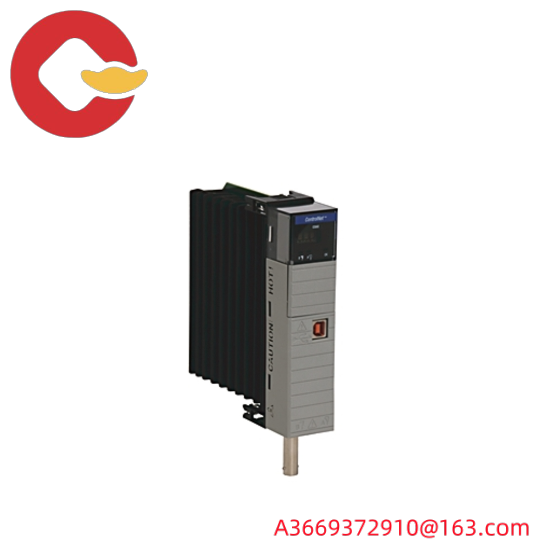

Allen-Bradley 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module

Model Type:Redundant Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CN2R/C

Number Of Channels:2

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

Communication Interface:ControlNet A/B to Backplane, ControlNet A to ControlNet B

Enclosure Type:Open Type

Rfi Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 900 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 1890 MHz, 3 V/M with 1 KHZ Sine-Wave 80% AM from 2000 – 2700 MHz

Temperature Range:0 – 60 °C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Connection:Ethernet

USB Port:Not Included

    Experience unparalleled system redundancy with the 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module, ensuring robust network connections in even the most demanding industrial environments.

    This high-performance module facilitates seamless data exchange between ControlNet networks, significantly reducing downtime and enhancing operational efficiency.

    Built with Allen-Bradley’s renowned reliability, this module boasts advanced isolation capabilities and efficient current handling, making it an ideal choice for critical applications.

    With its open-type enclosure and compatibility with shielded/unshielded twisted pairs, the 1756-CN2R/C effortlessly integrates into existing systems, offering flexibility and convenience.

    Optimize your automation strategy by incorporating the 1756-CN2R/C into your industrial control system. Trust Allen-Bradley for solutions that drive performance and reliability.
