Allen Bradley 1756-IB16IF ControlLogix 16 Point Digital Input Module – Industrial Automation Innovation

Model Type:16-point digital input

Manufacturer:Allen Bradley

Input Type:Discrete

No. of Inputs:16

Communication Cable:802.3 compliant shielded or unshielded twisted pair

Operating Voltage Range:20.4…26.4V DC

Current per Point:0.5 A @ 60 °C (140 °F), 1.0 A @ 30 °C (86 °F)

Power Supply:24 VDC

Bus Current Draw, Max:200 mA

Mounting:DIN rail or panel mount

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Communication Speed:10/100 MBPS

Enclosure:Open type

Connection Cables:Ethernet/IP Bridge

Power Dissipation:5.1 W

Isolation:30 V continuous

Interface:Ethernet

USB Port:Present

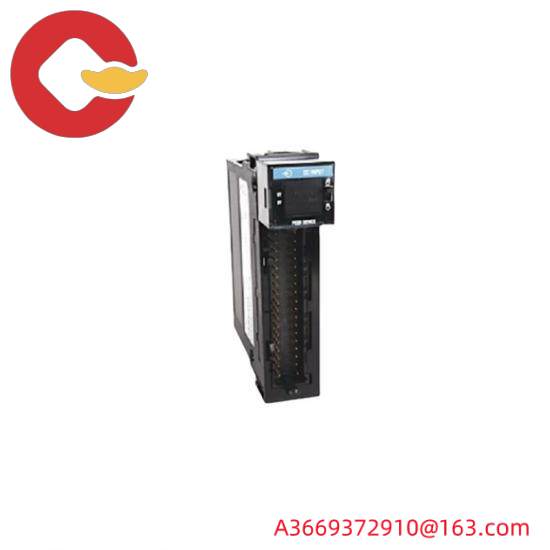

    The AB 1756-IB16IF is a state-of-the-art digital input module, specifically engineered for the rigorous demands of modern industrial automation environments. It offers unparalleled reliability and precision, making it an indispensable component for enhancing system efficiency and performance.

    Featuring a robust and compact design, this module is compatible with the comprehensive ControlLogix family of programmable logic controllers, ensuring seamless integration and easy installation within existing automation setups.

    With its high-speed communication capabilities, the 1756-IB16IF ensures rapid data transfer, facilitating real-time monitoring and control of industrial processes. The module’s versatility is further enhanced by its compatibility with various input types, including pull-up and pull-down configurations, catering to diverse application requirements.

    Operational within a wide temperature range (-40°C to +70°C) and in humid conditions without condensation, this module is built to withstand harsh industrial environments. Its internal power supply, sourced directly from the ControlLogix chassis, ensures a stable and uninterrupted operation, minimizing the risk of power supply issues.

    In addition to its technical prowess, the AB 1756-IB16IF is designed with user-friendliness in mind, featuring clear labeling and intuitive connection points. This makes it accessible to technicians and engineers alike, streamlining maintenance and troubleshooting processes.
