Model Number:2098-DSD-020X
Brand:Allen-Bradley
Power Rating:1 kW
Continuous Output Current:1 A
Intermittent Output Current:30 A
Operating Voltage Range:100-240VAC
Frequency Range:47-63 Hz
Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)
Weight:2.1 kg (4.6 lbs)
Energy Absorption Capability:125 Joules @ 115VAC, 51 Joules @ 230VAC
Bus Capacitance:1880 μF
Bus Overvoltage:400 Vdc
Input Requirements:Nominal 18 A rms, 100 A for series A and B, 20 A for series C at 230VAC (0-pk)

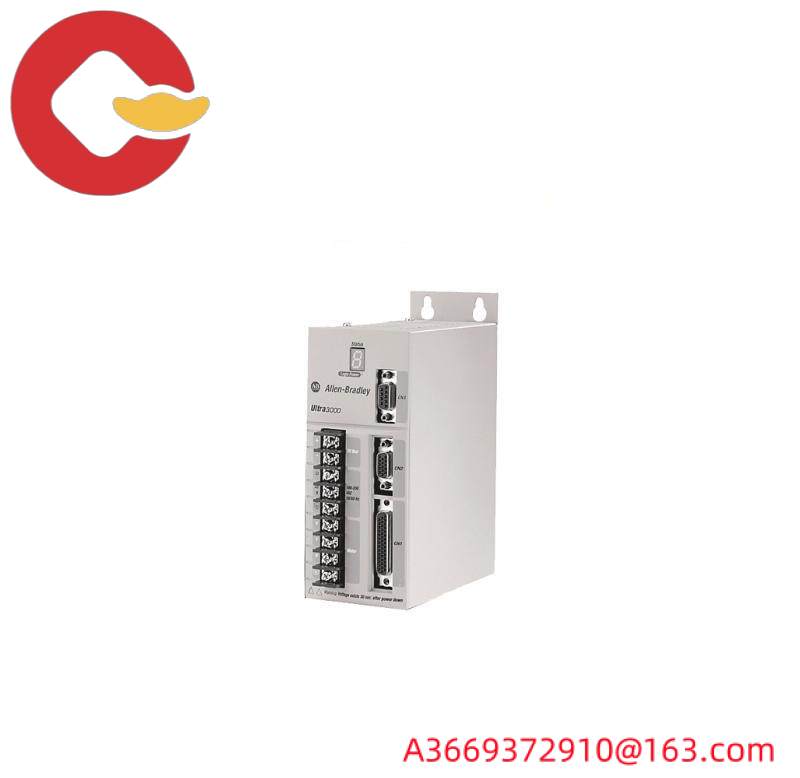

The Allen-Bradley 2098-DSD-020X servo drive is an essential component in the realm of industrial automation, designed to offer unparalleled precision and efficiency in motion control systems.
With its compact size and robust construction, this drive is suitable for a wide range of applications, including indexing, preconfigured drive motions, and multi-axis control.
Operated efficiently within an input voltage range of 100-240VAC, it ensures reliable performance across various operating conditions, making it a versatile choice for manufacturing environments.
Equipped with advanced features like energy absorption capability and bus overvoltage protection, the 2098-DSD-020X is engineered to withstand the rigors of industrial use, ensuring longevity and reliability.
Its compatibility with fuse types such as FNQ-R-20 Class CC and LPJ-20SP Class J adds an extra layer of safety and ease of installation, facilitating quick setup and maintenance.
