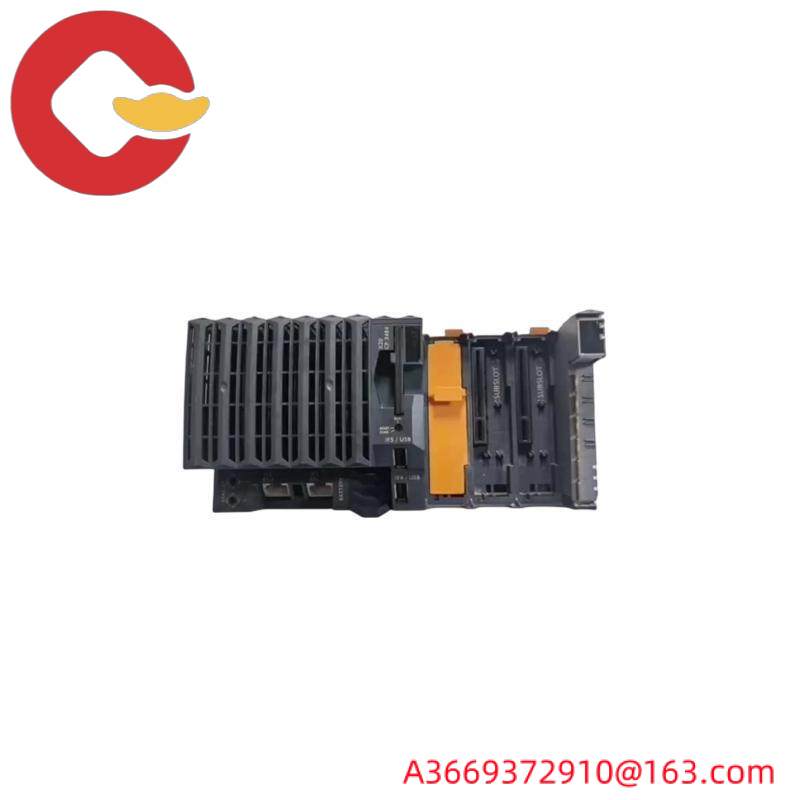

B&R X20CP1486 Modular Interface – Advanced IO Solution for Industrial Automation

Product Type:Modular Interface Module

Brand:B&R

Model:X20CP1486

Designation:Other

CPU:Intel x86-based, 100 MHz-compatible

Processor:Integrated I/O processor

Interfaces:1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link

System Module:CPU

Status Indicators:CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery

Power Consumption:Internal I/O: 0.6 W

Input Voltage:24 VDC -15% / +20%

Input Current:Max. 2.2 A

Nominal Output Power:7 W

    The B&R X20CP1486 Modular Interface is engineered with precision to deliver exceptional performance in industrial automation environments. Its compact design and versatile interface options make it an ideal choice for expanding the capabilities of your existing control systems.

    Featuring an Intel x86-based processor compatible with 100 MHz, this interface ensures smooth operation across a wide range of automation tasks. The inclusion of an onboard CompactFlash provides ample space for application memory, enabling quick access to critical data.

    With support for Ethernet, POWERLINK, and USB connections, the B&R X20CP1486 Modular Interface facilitates seamless communication between various devices within your automation network. This feature-rich interface is further enhanced by its ability to connect up to five additional racks through its remote I/O drops, making it highly scalable and adaptable to growing automation needs.

    Designed with user convenience in mind, the B&R X20CP1486 includes status indicators for monitoring CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, and battery health. These indicators ensure real-time insights into system status, allowing for proactive maintenance and optimization of operations.

    Power efficiency is another key aspect of the B&R X20CP1486 Modular Interface. With an internal I/O power consumption of just 0.6 watts, this interface minimizes energy usage without compromising on performance. It’s compatible with 24 VDC input voltage, providing flexibility in integration with various power sources.
