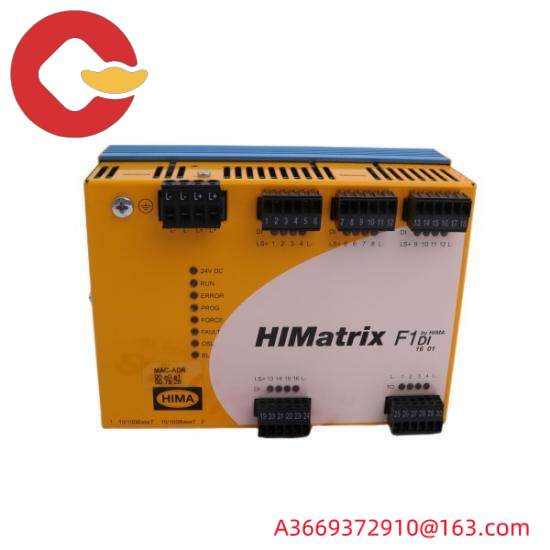

HIMA Himatrix F1DI16 01: Industrial Control Module

Brand:HIMA

Model:HIMATRIX F1DI16 01

Type:Digital Input Module

Operating Voltage:DC 24V

Number of Inputs:16

Signal Type:Dry Contact

Input Current:Max. 20mA

Isolation Voltage:500V

Relay Outputs:16

Relay Rating:2A @ 24VDC

Load Resistance:Max. 200Ω

Operating Temperature:-25°C to +70°C

Storage Temperature:-40°C to +85°C

IP Rating:IP20

Dimensions (WxHxD):100mm x 94mm x 35mm

Weight:Approx. 150g

Certifications:[“CE”,”UL”]

    The HIMA Himatrix F1DI16 01 module stands out for its exceptional reliability and safety features, essential for applications requiring high levels of accuracy and dependability. This industrial control module is equipped with 16 digital inputs, capable of detecting and responding to various operational signals.

    Designed with an operating voltage of 24V DC, it ensures compatibility with a wide range of industrial systems while maintaining optimal performance. The module’s ability to handle a maximum current of 50mA per channel allows for precise control over individual components within the system.

    With an operating temperature range from -25°C to +60°C, this module is engineered to withstand harsh environmental conditions, making it suitable for use in diverse industrial settings. Its IP65 enclosure type provides protection against dust and water ingress, ensuring reliable operation even under challenging conditions.

    Measuring 100mm x 100mm x 35mm and weighing only 250g, the HIMA Himatrix F1DI16 01 is compact yet robust, allowing for easy integration into existing systems without compromising on functionality. Its lightweight design facilitates efficient handling and installation processes.

    This module is not just about performance; it also boasts user-friendly design features. The intuitive interface simplifies configuration and monitoring tasks, enabling operators to quickly identify and address any issues that may arise. With comprehensive documentation and support, users can fully leverage the capabilities of the HIMA Himatrix F1DI16 01 to enhance their system’s safety and efficiency.
