Model Type:TMR, AI
Model Number:3700/3700A
Voltage:0-5V, + 6%
Type:Analog I/O
No. of Input Points:32, diff, DC coupled
Isolated Points:No
Input Update Rate:55 ms
Resolution:12 bits
Accuracy:< .15% of FSR, from 0° to 60°C
Input Resistance (load):30 MΩ (DC), min.
Power-Off Resistance:30 KΩ (DC), typical
Common Mode Rejection:-80 dB (DC-100Hz), typical
Common Mode Range:-12V to +12V peak
Leg-to-Leg Isolation:200 KΩ, typical
Normal Mode Rejection @ 8Hz:-3 dB
Normal Mode Rejection @ 60Hz:-17 dB
Normal Mode Rejection @ 120Hz:-23 dB

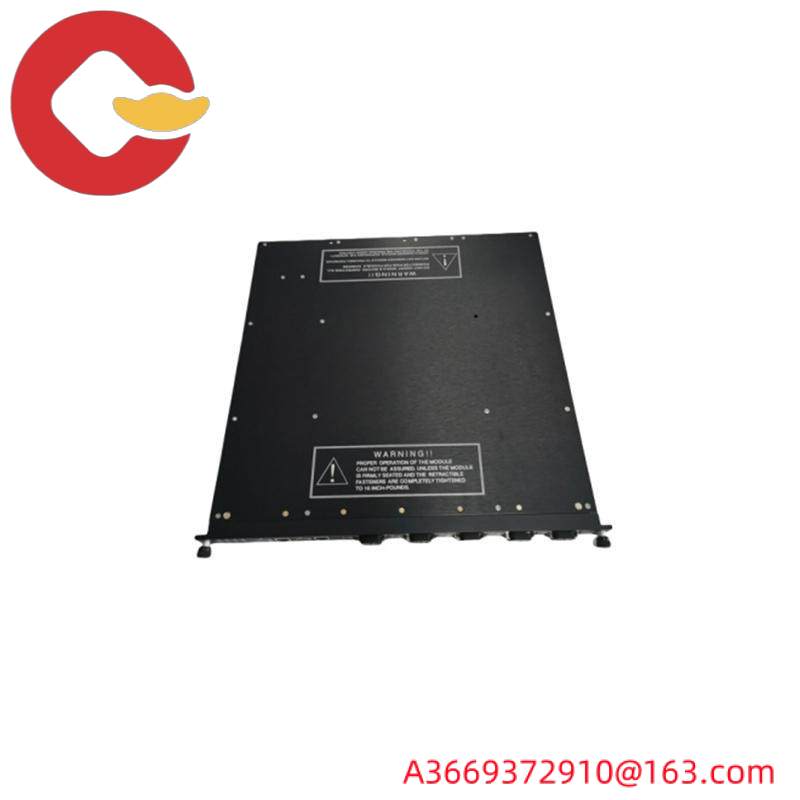

The Invensys Triconex 3700A Analog Input Module is a cornerstone of robust industrial control systems, designed to handle the most stringent data acquisition tasks. Its high-precision capabilities are essential for ensuring accurate process monitoring and control in a variety of applications.
Featuring an impressive array of input points and exceptional isolation, this module can be seamlessly integrated into existing networks without compromising on reliability or performance. Its ability to operate within a wide voltage range makes it adaptable to diverse industrial environments.
With a resolution of 12 bits, the 3700A provides unparalleled accuracy, even under varying environmental conditions. This level of precision is critical for maintaining optimal operational efficiency and minimizing errors in data transmission.
Built with advanced signal processing technology, the module ensures consistent and reliable data acquisition, reducing the risk of false readings and system downtime. The module’s design also prioritizes ease of use and maintenance, facilitating quick setup and troubleshooting.
To further enhance its utility, the Invensys Triconex 3700A Analog Input Module comes equipped with comprehensive documentation and support resources. This enables users to fully leverage its capabilities, optimizing their operations and achieving superior results.
