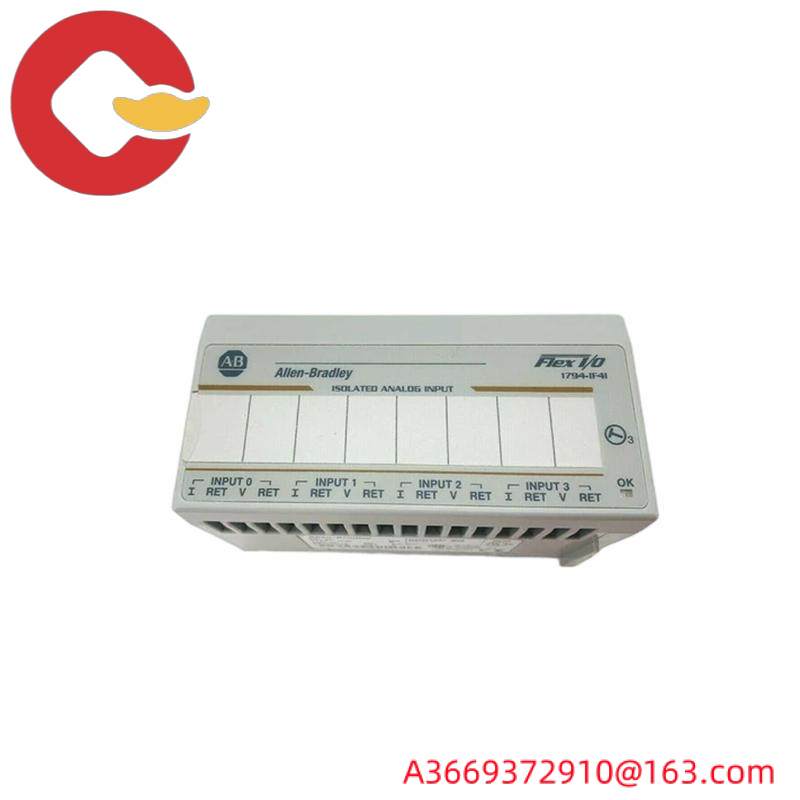

Product Type:Flex I/O 4-Channel Isolated Analog Input Module
Manufacturer:Allen-Bradley / Rockwell Automation
Model:1794-IF4I
Number of Channels:4
Input Type:Isolated Analog
Voltage Range:±10V
Current Rating:±20mA
Power Consumption:150mA max
Operating Temperature:-25°C to +70°C
Weight:0.3 kg
Mounting:DIN Rail
The A-B 1794-IF4I is an essential component for any industrial control system needing to accurately measure and process analog signals. This module supports 4 channels, each capable of handling ±10Vdc or ±20mA input ranges, providing a total of 12-bit resolution for precise data acquisition.
With an accuracy of ±0.1% of reading, this module ensures reliable performance even under demanding conditions. Its wide operating temperature range (-40°C to +85°C) makes it suitable for use in harsh environments, including outdoor installations and industrial machinery.
Designed with ease of installation in mind, the 1794-IF4I features a compact size (2.75″ H x 2.5″ W x 5.3″ L) and can be easily mounted onto a DIN rail. This allows for efficient space utilization within control cabinets and panels.
This module operates on a 15-30Vdc power supply, offering flexibility in integration with different types of power sources commonly found in industrial settings. Its robust design ensures long-term reliability and minimal maintenance requirements.
Compliant with international standards and backed by Allen-Bradley’s reputation for quality and innovation, the A-B 1794-IF4I is an excellent choice for upgrading or expanding existing industrial control systems. Whether you’re working on a new project or seeking to enhance your current setup, this module offers the precision and reliability you need.
