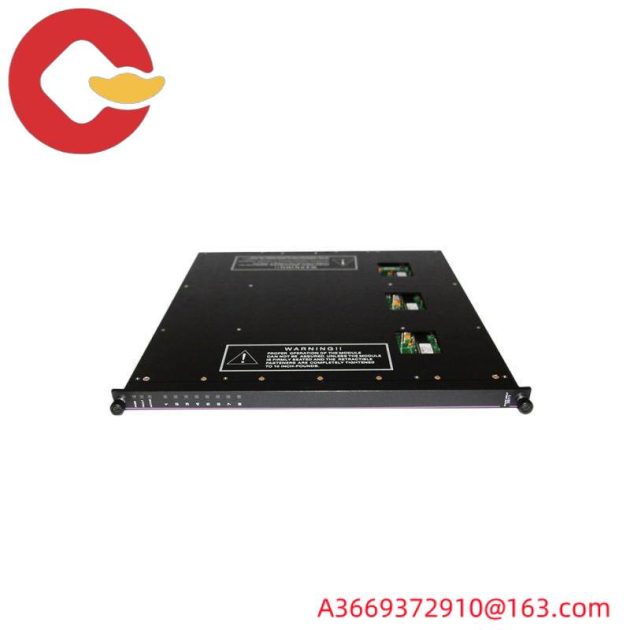

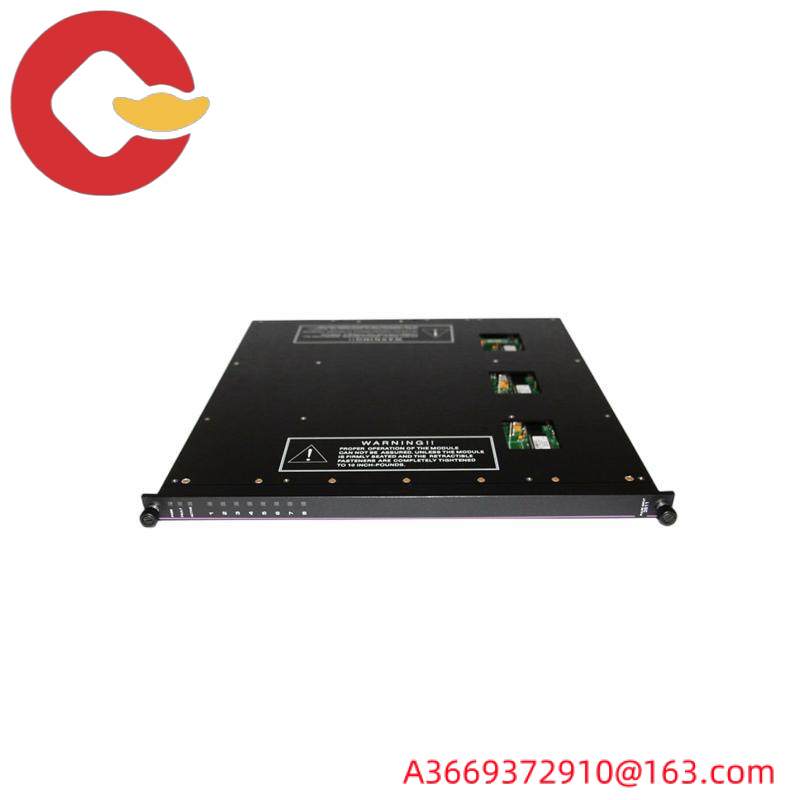

Triconex 3511 Pulse Module – High Precision Industrial Control

Model Type:TMR, PI

Input Signals:8, non-commoned

Resolution:16 bits

Accuracy:1,000 Hz to 20,000 Hz, ± 0.01%

Input Characteristics:(AC coupled, balanced differential)

Update Rate:25 ms, typical

Impedance (load):> 8 KW, 20 KW typical

Common Mode Range:-100 VDC to +100 VDC peak-to-peak

Normal Mode Range:1.5 V to 200 V peak-to-peak

Overrange Protection:±150 VDC, continuous

Hysteresis:150 millivolts, typical

Wave Shape:Sine, square, pulse, etc.

    The Triconex 3511 Pulse Module is designed for industrial automation systems that demand precise control over mechanical processes. Its high-resolution inputs enable accurate signal processing, making it an indispensable component in complex control scenarios.

    Featuring a TMR (Triple Modular Redundancy) design, this module ensures operational reliability even under the most challenging conditions, reducing the risk of system failure. Its robust AC coupling and balanced differential inputs provide exceptional noise immunity.

    With a versatile update rate of 25 milliseconds, the module can quickly respond to changes in the system, ensuring smooth operation and efficient data exchange between different control components. The high accuracy of 1,000 Hz to 20,000 Hz, with ± 0.01% precision, guarantees reliable performance in a wide range of applications.

    The module’s wide input voltage range (-100 VDC to +100 VDC peak-to-peak) and high normal mode voltage range (1.5 V to 200 V peak-to-peak) make it suitable for various industrial environments, from high-voltage applications to sensitive low-voltage setups.

    Equipped with overrange protection at ±150 VDC and a typical hysteresis of 150 millivolts, the Triconex 3511 Pulse Module safeguards against false triggers and ensures stable operation even when dealing with fluctuating signals. The ability to handle a variety of wave shapes, including sine, square, and pulse, further enhances its adaptability across different control protocols.
