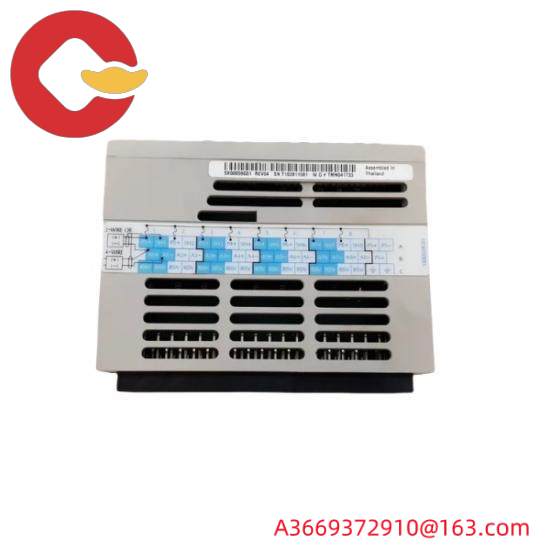

Westinghouse 5X00059G01 HART Analog Input Module for Emerson Ovation Systems

Model Number:5X00059G01

Module Type:HART Analog Input

Operating Range:0 – 20 mA

Supply Voltage:12 – 36 VDC

Communication Protocol:HART

Input Resistance:1 kΩ

Environmental Rating:IP67

Temperature Range:-40°C to +70°C

Dimensions:100 mm x 50 mm x 30 mm

Weight:0.15 kg

    The Emerson Ovation 5X00059G01 Westinghouse HART Analog Input Module is meticulously engineered for seamless integration into complex industrial control systems. This module excels at converting analog signals from various sensors into digital formats that can be easily processed by modern control systems.

    With its wide operating voltage range of 220 V, this module ensures robust performance across different industrial settings, making it a reliable choice for global operations. The module’s 30 kHz output frequency ensures high-speed data transmission without compromising on accuracy.

    Featuring a -10 to +10 V analog input range, the module is versatile enough to handle a broad spectrum of sensor outputs. Its power consumption of less than 5 W is optimized for energy efficiency, contributing to lower operational costs over time.

    Equipped with HART communication protocol, the module allows for bi-directional communication between the process instruments and the control system, enhancing diagnostic capabilities and maintenance efficiency. Its IP67 environmental rating guarantees protection against dust and water ingress, ensuring reliability in harsh industrial environments.

    The 1 MΩ input resistance minimizes signal distortion, ensuring accurate signal representation. Coupled with its current output type of 4-20 mA, the module facilitates seamless data exchange in a variety of control scenarios, making it an indispensable part of any industrial automation project.
