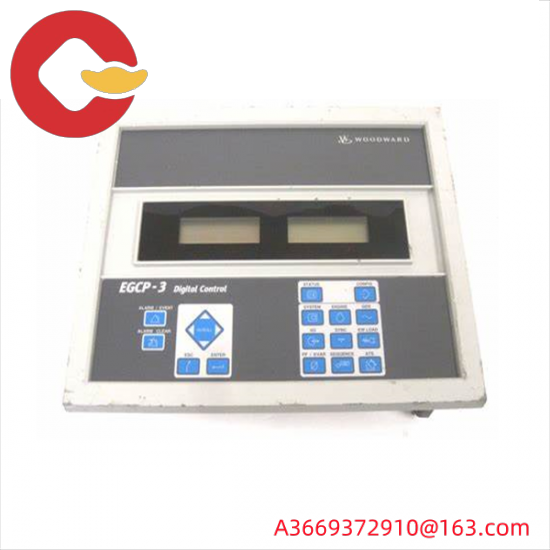

WOODWARD 8406-113: High-Performance Engine Generator Control Interface Panel

Dimensions:282H x 359W x 135D mm

Speed Bias:4–20 mA, 0–5 V, PWM, or ±3 V output

Input Voltage:18-32 V dc

Operating Temperature:-20 to +70 °C

Slot Type:3

Serial Ports:N/A

Storage Temperature:-30 to +80 °C

Weight:4.3 kg (9.5 pounds)

    The Woodward 8406-113 Digital Control Interface Panel is part of the EGCP-3 Engine Generator Control Package, specifically designed for load sharing applications. It integrates seamlessly with other load sharing units to optimize performance in complex generator control scenarios.

    Featuring a robust microprocessor design, this interface panel provides precise speed bias control, ensuring smooth operation of engines across various loads. Its versatile output capabilities cater to different control needs, including current and voltage outputs.

    With an operating temperature range from -20°C to +70°C, the Woodward 8406-113 is built to withstand harsh environments commonly found in industrial settings. The compact size and durable construction make it suitable for space-constrained areas.

    This digital control interface panel supports a wide input voltage range, making it adaptable to a variety of power sources. It offers advanced monitoring and diagnostic functions, allowing for real-time analysis of system performance and quick troubleshooting.

    For users seeking reliability, efficiency, and precision in their generator control systems, the Woodward 8406-113 Digital Control Interface Panel is an ideal choice. Its compatibility with Woodward’s load sharing technology ensures seamless integration into existing or new systems, enhancing overall operational efficiency.
