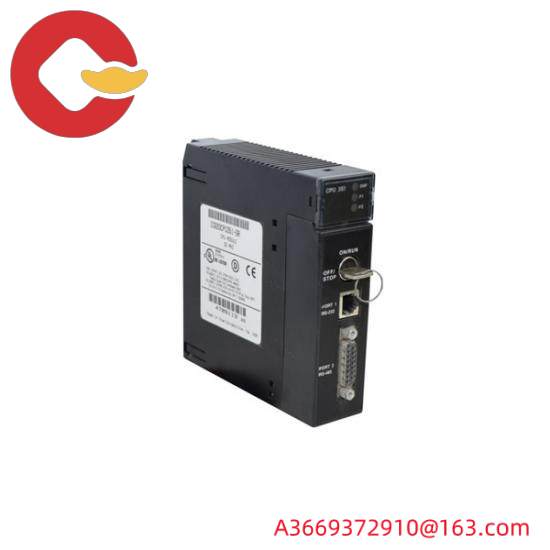

IC693CPU351-HT|The single-slot modular CPU supports 2048 discrete inputs
Brand GE Fanuc
Series Series 90-30
Manufacturer GE Fanuc
Part number IC693CPU351
Product Description Modular CPU
Product Type CPU module
User memory 240 KB
Compatibility GE Fanuc 90-30 Programmable controllers
The GE Fanuc 90-30 module with directory number IC693CPU351 is part of the modular CPU subclass. The CPU is designed for applications that require higher complexity, faster processing speed, and support for large amounts of I/O. The module is a single slot CPU module designed to be mounted onto a 5 – or 10-slot CPU backboard. The IC693CPU351 supports a large number of I/ OS, especially 2048 discrete input points (%I). 2048 discrete output points (%Q) and analog I/O words, depending on the software used, however, each has a maximum configurable analog I/O of 32, 640 words. The number of other internal registers available for this CPU includes 1280 bits of binary global memory; 4096-bit memory coil; 256-bit temporary output coil; 128-bit system status reference; Up to 32,640 words of register memory and 28,000 words of system register for viewing reference tables only. The modular CPU can be configured to communicate and perform I/O data exchange between I/O expansions or remote I/O backboards. Specifically, seven (7) and/or I/O expansion or remote I.O baseboards. For communication with visualization systems such as Human Machine Interface (HMI) or Supervisory Control and Data Acquisition systems (SCADA) and other automation devices, the IC693CPU351 provides three (3) serial ports. One (1) serial port is located on a power connector that supports SNP/SNPX slave stations, while ports 1 and 2 support RTU slave stations and SNP/SNPX master/slave protocols. The modular CPU also supports the installation of communication modules.
The GE Fanuc IC693CPU351 CPU is a modular CPU module. The IC693CPU351 CPU was developed for use in the 90-30 series Programmable Logic controller (PLC) systems. The CPU has a clock speed of 25 megahertz. The processor type is 80386EX processor. The IC693CPU351 CPU is part of the GE350 to 364 CPU family, which was developed to meet customer needs for faster processing speed and increased memory size. The IC693CPU351 CPU is supported by Logicmaster 90-30, microprogramming and configuration software released version 6.0 and later, and control programming and configuration software released version 2.0 and later. The user memory on the IC693CPU351 CPU is 240 KB (supported by CPU firmware 9.0 and later). For firmware before version 9.0, the CPU module memory size is 80 KB. The IC693CPU351 CPU does not support an embedded Ethernet port, but there are three built-in serial ports on the CPU module. Optional communication modules available for the IC693CPU351 CPU include Profibus, GBC, Ethernet, GCM, and GCM+ modules. The IC693CPU351 CPU supports floating point math functions. The IC693CPU351 CPU also provides a key switch. A sequential event logger is also provided on the module. The internal coil on the module is rated at 4096 bits and the output (temporary) coil is rated at 256 bits. The power supply of the IC693CPU351 CPU is required to be 5 volts DC and 890 mA. The IC693CPU351 CPU provides battery powered clock and overlay. Operating temperature range is 32 to 140 degrees Fahrenheit.
