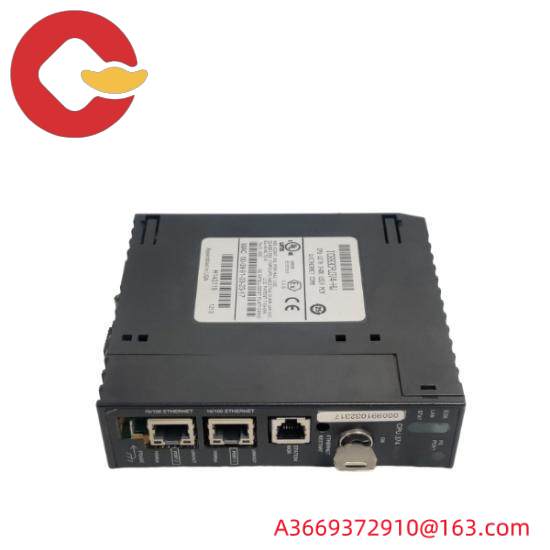

IC693CPU374|240KB embedded user memory with two (2) Ethernet communication ports
Brand GE Fanuc
Series Series 90-30
Part number IC693CPU374
I/O count 2048
Processor speed 133 megahertz
Register memory 240 KB
The power supply requires 7.4 watts at 5 volts DC
Floating point math, yes.
Processor Model Embedded 586
Serial port RS-485 (via power supply)
Ethernet port number 2
Operating temperature 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
The IC693CPU374 is a GE Fanuc Programmable Logic controller (PLC) module in the 90-30 series. The module is a processor module for hosting user programs, executing logic, and exchanging management data with the processor via an embedded communication port.
IC693CPU374 can also be called controller. The controller has a built-in microprocessor with an embedded 586 processor and a processing speed of 133 MHz. Its typical scan rate is 0.15 ms per 1K Boolean contact logic. The controller module has a single slot width and can be installed into a 90-30 PLC rack.
The IC693CPU374 has 240KB of user memory. It has two (2) Ethernet communication ports, supports 10/100 Mbps transmission speed, and has automatic sensing function. These ports enable the controller to connect to an Ethernet network to communicate with programming workstations such as desktop or laptop computers, with human machine interface (HMI) and supervisory control and data acquisition (SCADA) systems, and with other processors for messaging functions. The controller can also communicate via the RS485 communication interface on the power supply, whether it is a standard power supply or a high-capacity power supply.
This controller accepts user programs developed using a variety of programming software applications, Examples include VersaPro version 2.03 or later, CIMPLICITY Machine Edition Logic Developer version 2.60 or later, and control software version 2.50 or later. When making online edits to the controller using an existing user program, use the same or later version of the same software.
